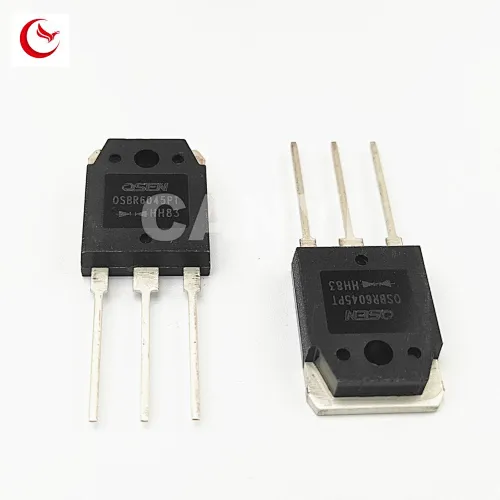

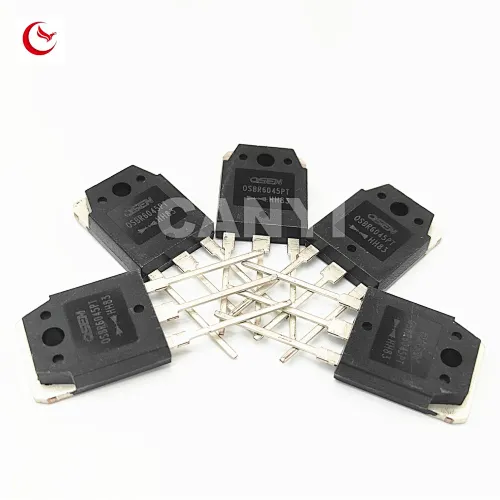

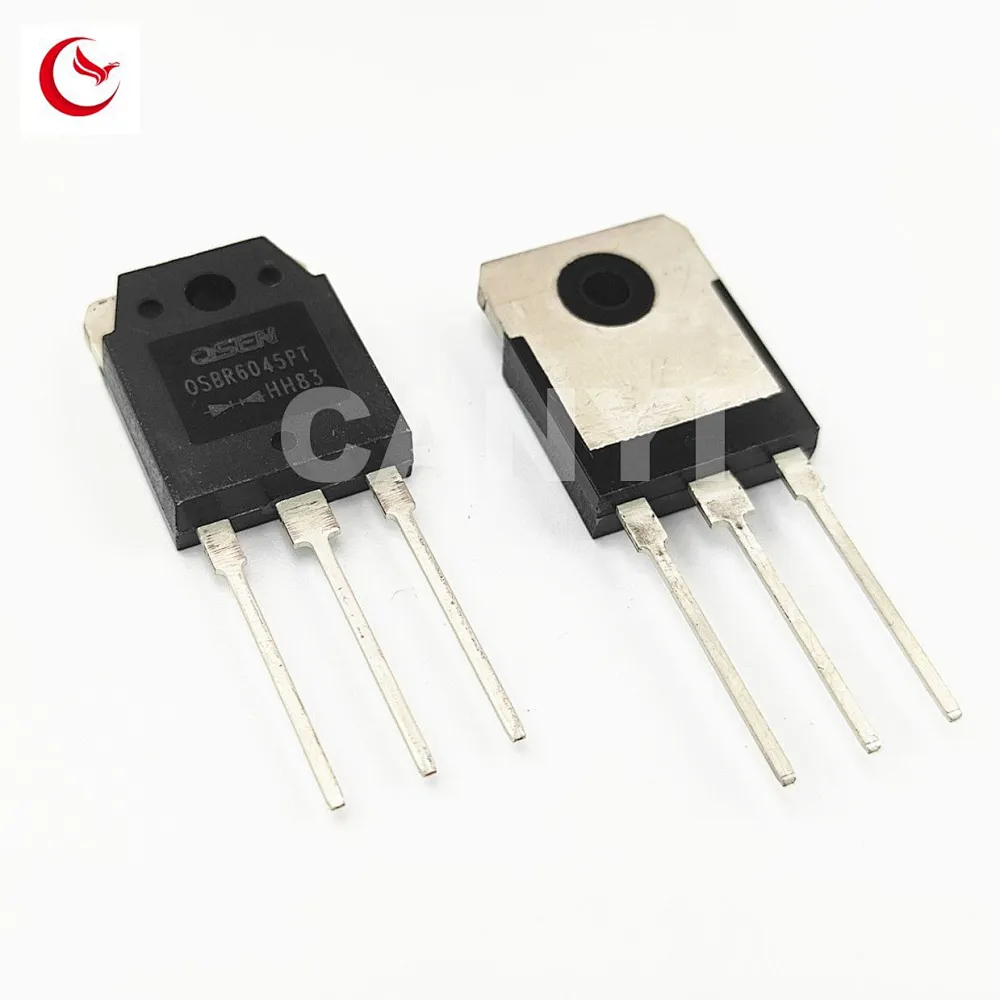

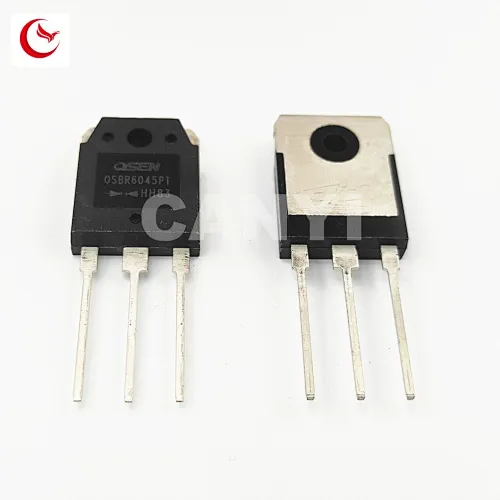

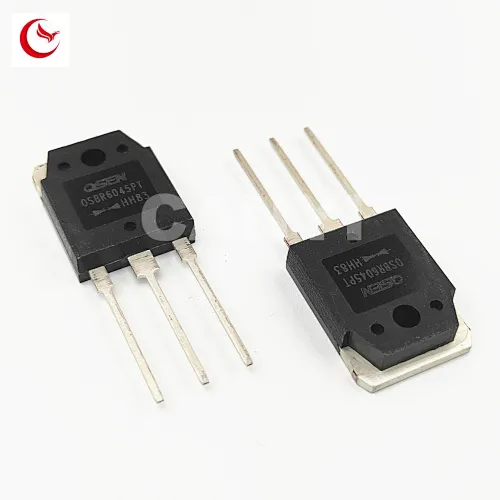

MBR6045WT,OSBR6045PT,Schottky diode,rectifier
MBR6045WT,OSBR6045PT,Schottky diode,rectifier. I look forward to cooperating with you. I will provide you with quality service.
Diode-rectifier MBR6045 package pipe fitting Diode type Schottky Voltage-DC Reverse (Vr) (max) 45 V Current-average rectification (Io) 60A Voltage-Forward (Vf) at Different If Times 650 mV @ 30 A speed Fast recovery =< 500ns, > 200mA(Io) Current at different Vr times-reverse leakage 1 mA @ 45 V Capacitance at different Vr and F 1400pF @ 5V,1MHz Installation type through-hole Package/housing TO-3P Supplier device package TO-3P Operating temperature-junction -55°C ~ 150°C
