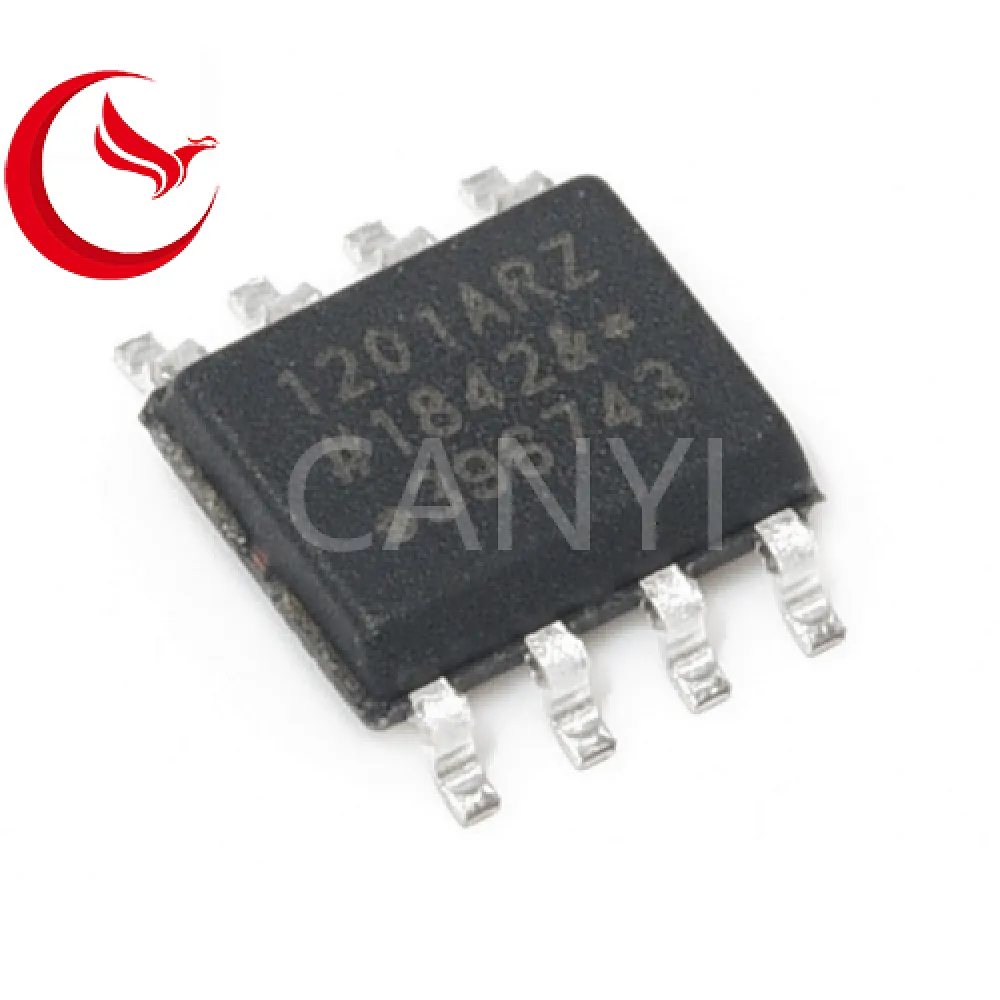

ADUM1201ARZ-RL7，Integrated circuit，liner，Digital isolator，Analog Devices Inc.，ADUM1201ARZ-RL7，series iCoupler® package rewind technology magnetic coupling type be in common use Isolated power supply without port number Two Input-Side 1/ Side 2 1/1 Channel type one-way Voltage-isolation 2500Vrms Common-mode transient immunity (minimum) 25kV/µs data rate 1Mbps Propagation tpLH/tpHL (maximum) 150ns，150ns Pulse width distortion (maximum) 40ns Rise/fall time (typical) 10ns，10ns Voltage-power supply 2.7V ~ 5.5V Working temperature -40°C ~ 105°C Installation type Surface mount type Package/housing 8-SOIC(0.154",3.90mm wide) Supplier device package 8-SOIC
