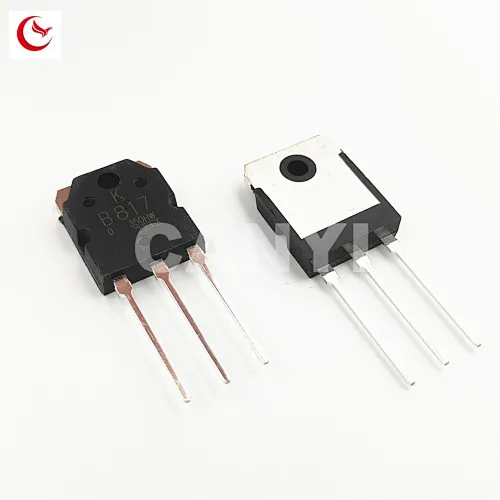

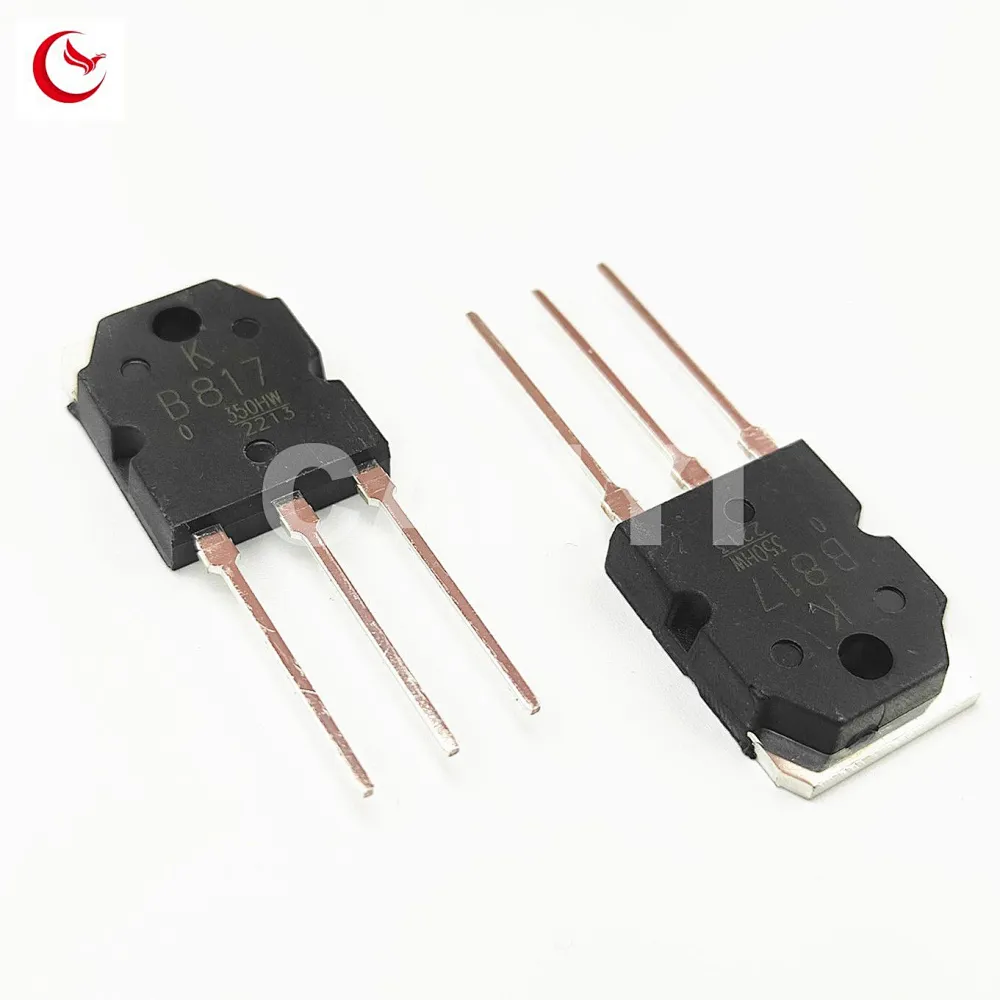

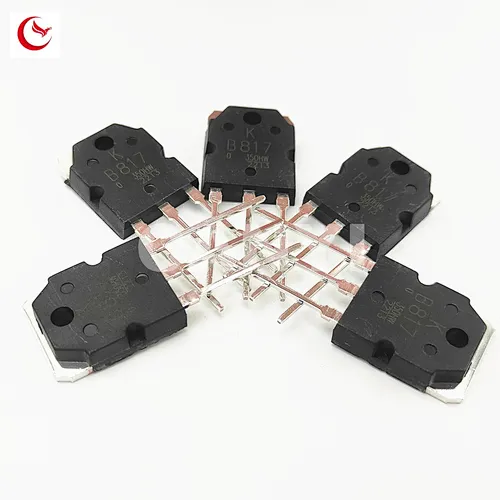

B817 Transistor Type NPN
B817
B817 Transistor Type NPN
Quantity
Packaging Tube
Part StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)12A
Voltage - Collector Emitter Breakdown (Max)140V
Vce Saturation (Max) @ Ib, Ic700mV @ 700mA, 7A
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce60 @ 1A, 5V
Power - Max100W
Frequency - Transition20MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3P-3, SC-65-3
Supplier Device PackageTO-3P
