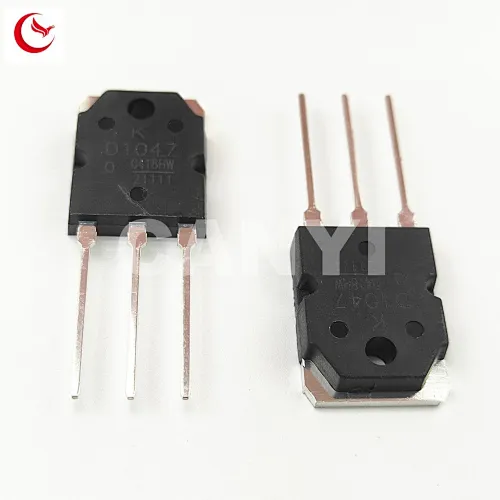

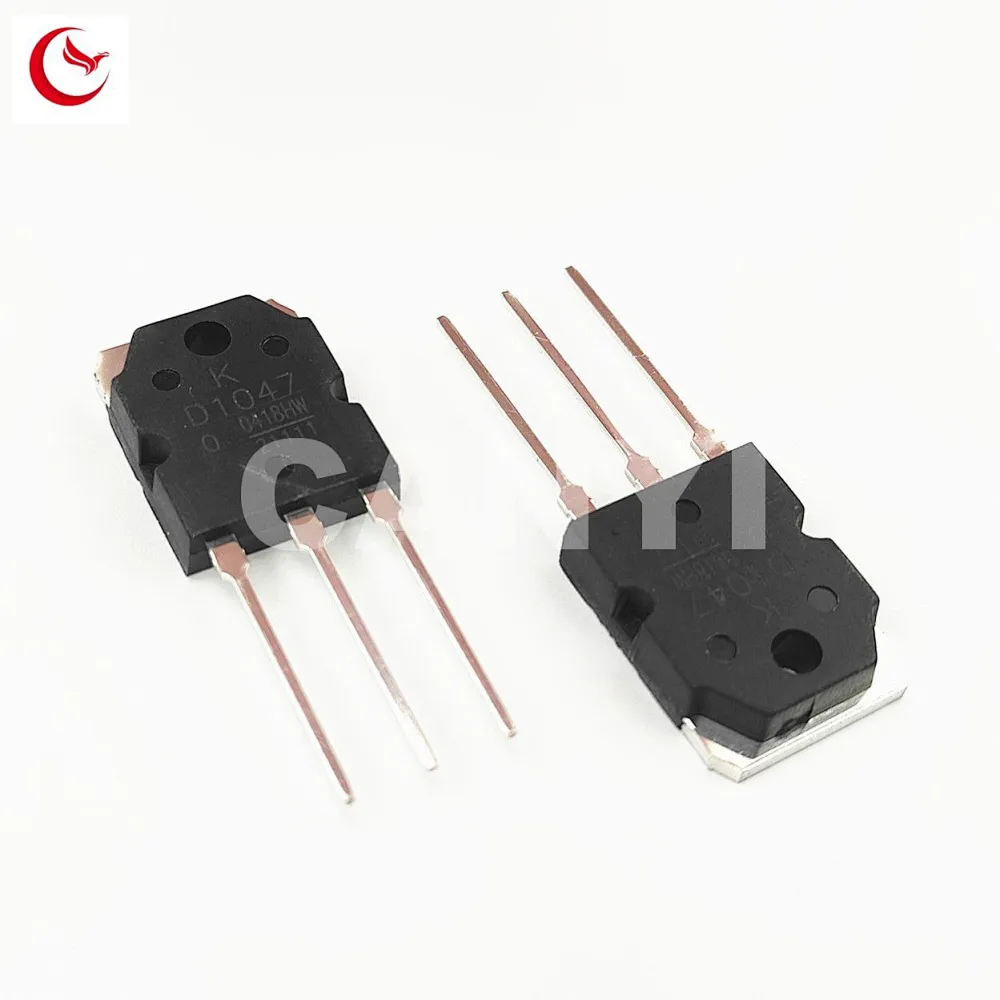

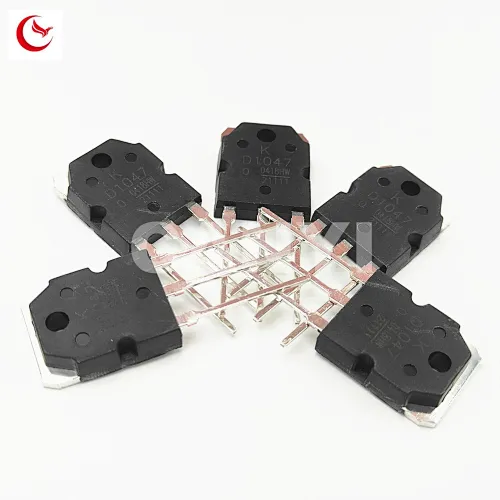

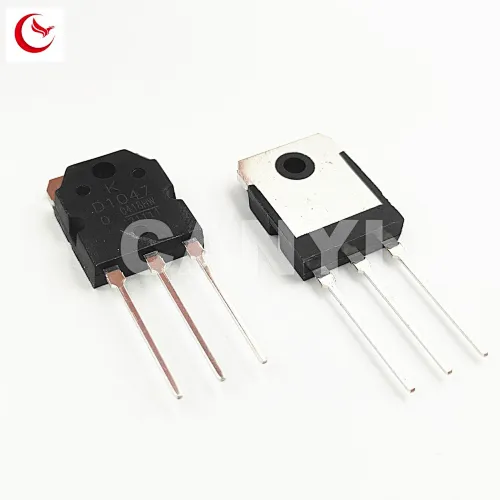

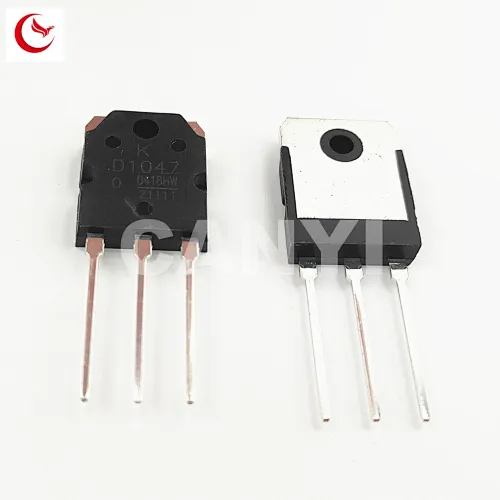

D1047 in Darlington tube
D1047
D1047 Transistor Type NPN
Quantity
| Packaging | Tube |
| Part Status | Active |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 12A |
| Voltage - Collector Emitter Breakdown (Max) | 140V |
| Vce Saturation (Max) @ Ib, Ic | 700mV @ 700mA, 7A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 1A, 5V |
| Power - Max | 100W |
| Frequency - Transition | 20MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-3P-3, SC-65-3 |
| Supplier Device |
