Discrete semiconductor products

Diode rectifier single

packing

Roll tape (TR)

Shear band (CT)

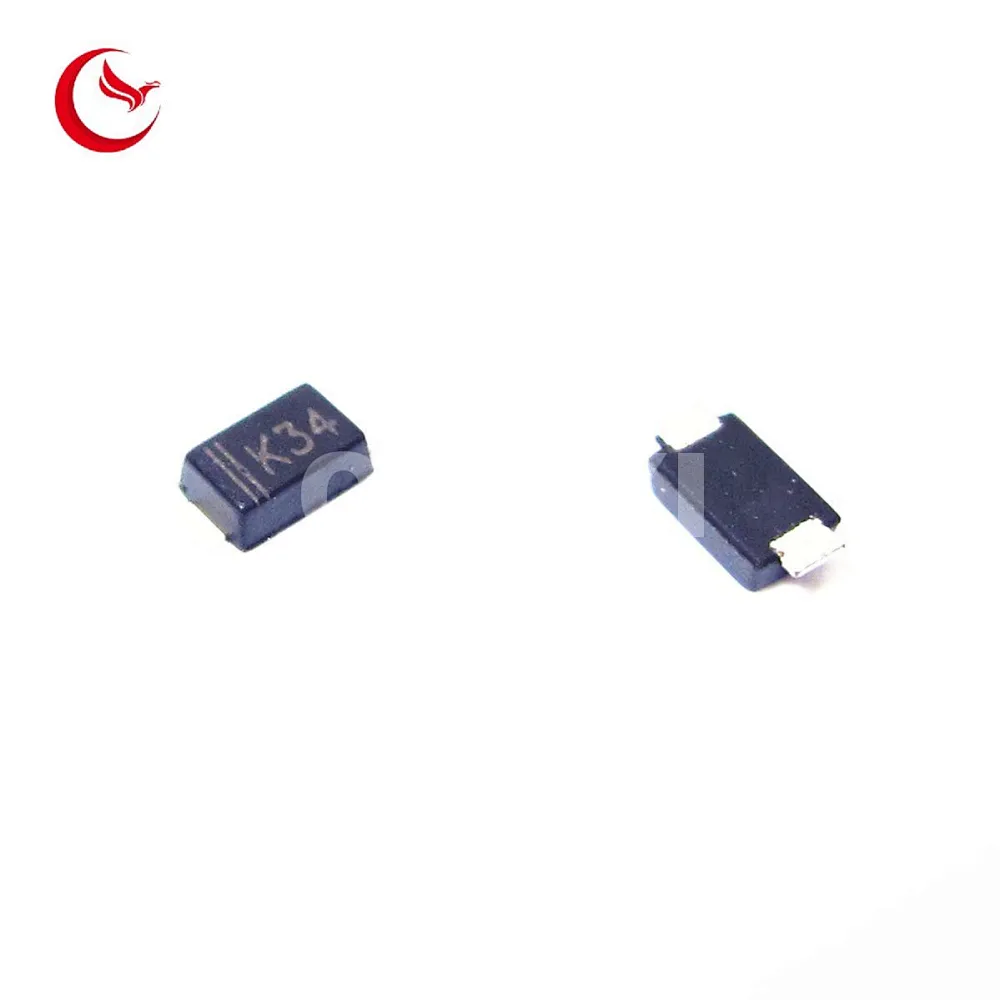

Diode type

Schottky barrier

Voltage - DC reverse (Vr) (maximum)

40 V

Current average rectification (Io)

3A

Voltage at different If - forward (Vf)

500 mV @ 3 A

speed

Rapid recovery=<500ns,>200mA (Io)

Current - reverse leakage at different Vr

500 µA @ 40 V

Capacitance at different Vr and F

-

Installation type

Surface mount

Encapsulation/Housing

DO-219AB

Supplier device packaging

Sub SMA

Operating temperature junction

-55°C ~ 150°C
