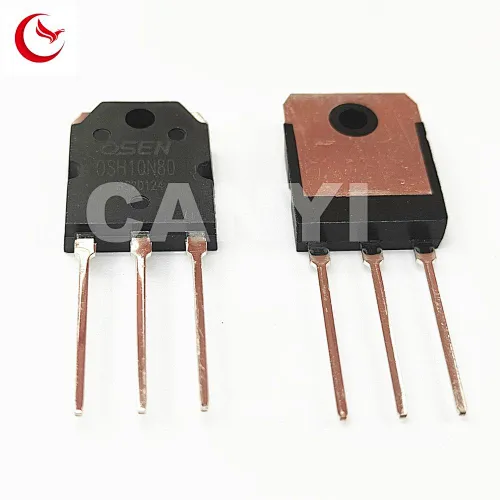

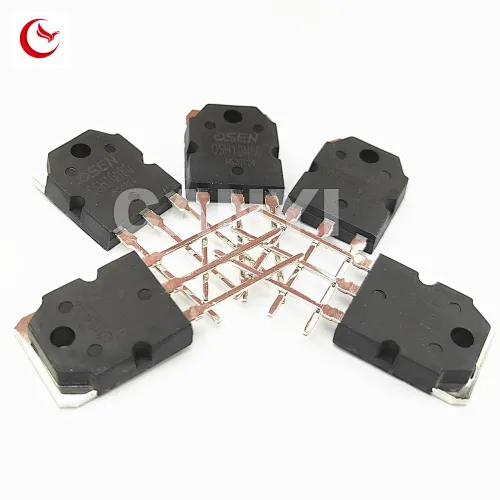

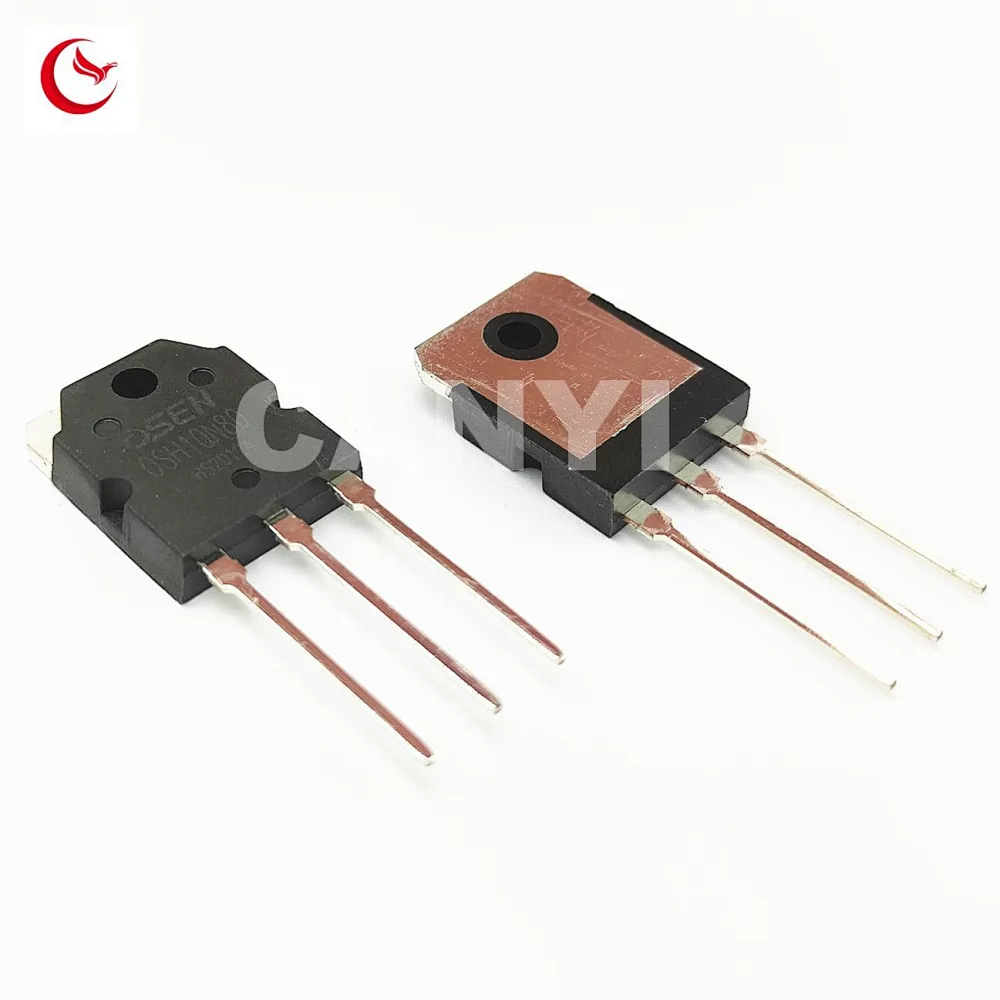

OSH10N80,FQAF10N80,Field effect tube,MOSFET
FQAF10N80
10A 800V TO-3P FQAF10N80,Field effect tube,MOSFET,Contact us to provide more detailed product information.MOS tube manufacturers and sellers from China provide quality products and services, and look forward to your cooperation.
Quantity
10A 800V TO-3P FQAF10N80,Field effect tube,MOSFET,Contact us to provide more detailed product information.MOS tube manufacturers and sellers from China provide quality products and services, and look forward to your cooperation.
Transistor-FET, MOSFET package pipe fitting Type of FET N channel technology MOSFET (metal oxide) Drain-source voltage (Vdss) 800 V Current at 25°C-continuous drain (Id) 6.7A（Tc） Driving voltage (maximum Rds On, minimum Rds On) 10V On-resistance with different Id and Vgs (maximum) 1.05 ohm @ 3.35A, 10V Vgs(th) when Id is different (maximum) 5V @ 250µA Gate charge (Qg) at different Vgs (maximum) 71 nC @ 10 V Vgs (maximum) ±30V Input capacitance (Ciss) at different Vds (maximum) 2700 pF @ 25 V FET function - Power dissipation (maximum) 113W（Tc） Working temperature -55°C ~ 150°C（TJ） Installation type through-hole Device packaging TO-3PF
Transistor-FET, MOSFET package pipe fitting Type of FET N channel technology MOSFET (metal oxide) Drain-source voltage (Vdss) 800 V Current at 25°C-continuous drain (Id) 6.7A（Tc） Driving voltage (maximum Rds On, minimum Rds On) 10V On-resistance with different Id and Vgs (maximum) 1.05 ohm @ 3.35A, 10V Vgs(th) when Id is different (maximum) 5V @ 250µA Gate charge (Qg) at different Vgs (maximum) 71 nC @ 10 V Vgs (maximum) ±30V Input capacitance (Ciss) at different Vds (maximum) 2700 pF @ 25 V FET function - Power dissipation (maximum) 113W（Tc） Working temperature -55°C ~ 150°C（TJ） Installation type through-hole Device packaging TO-3PF
