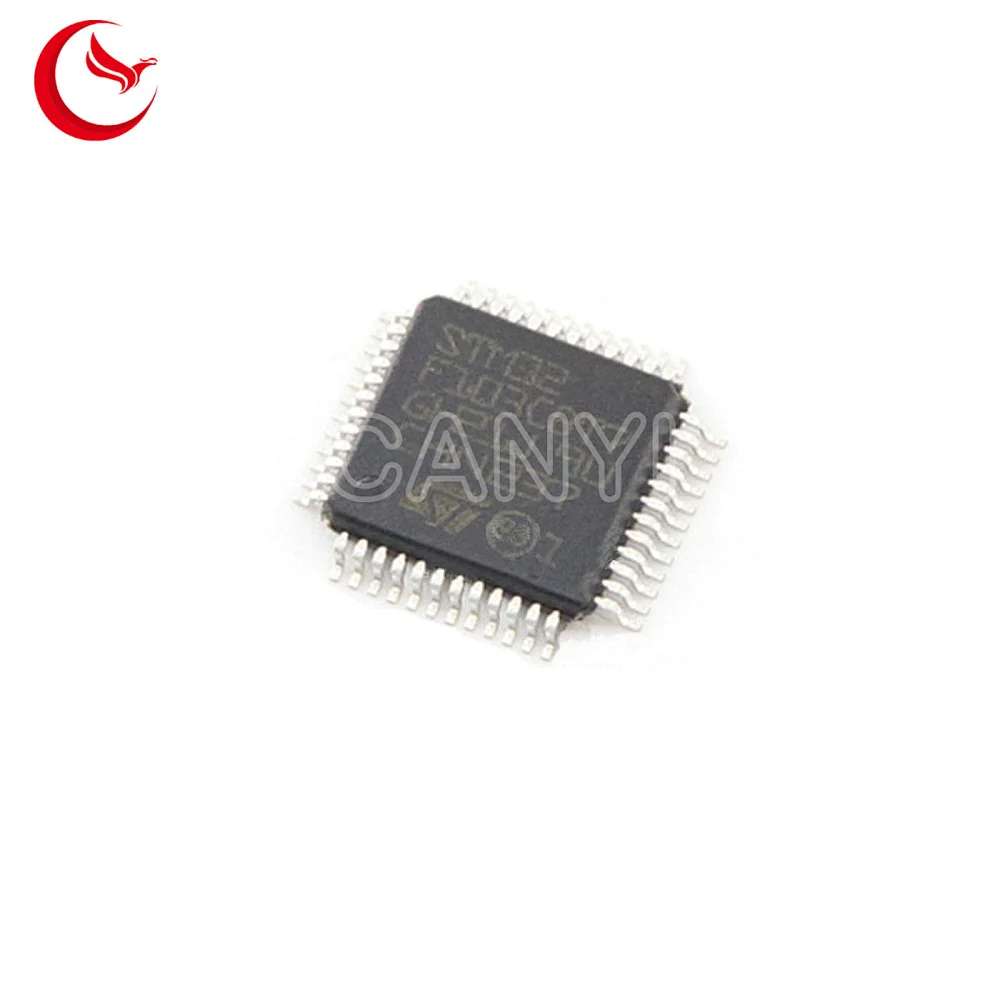

STM32F103CBT7
STM32F103CBT7
IC MCU 32BIT 128KB FLASH 48LQFP
Quantity
Integrated circuit (IC)
Embedded
microcontroller
manufacturer
STMicroelectronics
series
STM32F1
package
tray
Core processor
ARM® Cortex®-M3
Core specification
32-bit single core
speed
72MHz
Connection ability
CANbus,I²C,IrDA,LIN,SPI,UART/USART,USB
peripheral device
DMA, motor control PWM, PDR, POR, PVD, PWM, temperature sensor, WDT
I/O number
Thirty-seven
Program storage capacity
128KB(128K x 8)
Program memory type
flash memory
EEPROM capacity
-
RAM size
20K x 8
Voltage-supply (Vcc/Vdd)
2V ~ 3.6V
data converter
A/D 10x12b
Oscillator type
inside
Working temperature
-40°C ~ 105°C(TA)
Installation type
Surface mount type
Package/housing
48-LQFP
Supplier device package
48-LQFP(7x7)
