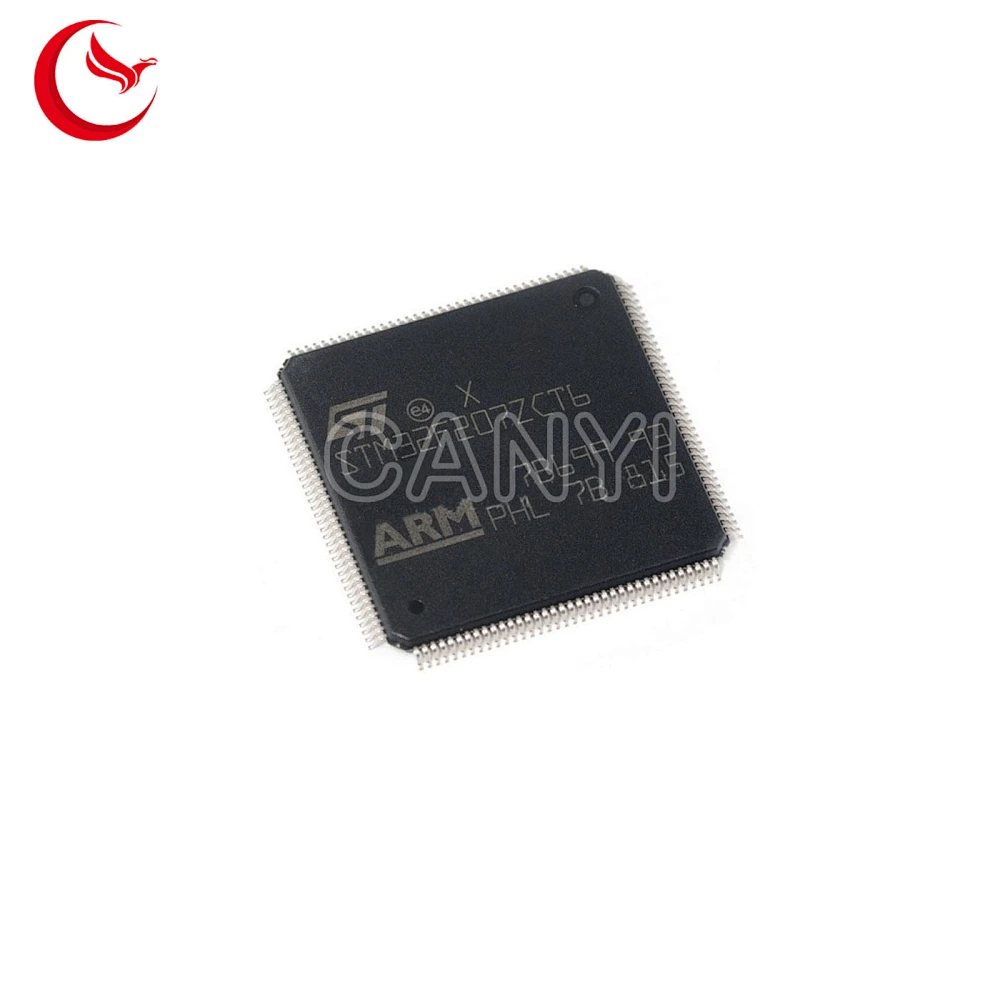

STM32F207ZCT6 integrated circuit Embedded microcontroller STMicroelectronics
STM32F207ZCT6
1
STM32F207ZCT6 integrated circuit Embedded microcontroller,Chip distributor manufacturer from China.I look forward to cooperating with you. I will provide you with quality service.
Quantity
STM32F207ZCT6 integrated circuit Embedded microcontroller,Chip distributor manufacturer from China
integrated circuit Embedded microcontroller STMicroelectronics package tray Core processor ARM® Cortex®-M3 Core specification 32-bit single core speed 120MHz Connection ability CANbus, Ethernet, IC, IrDA, LINbus, memory card, SPI, UART/USART, USB OTG peripheral device Undervoltage detection/reset, DMA, is, LCD, POR, PWM, WDT I/O number One hundred and fourteen Program storage capacity 256KB（256K x 8） Program memory type flash memory EEPROM capacity - RAM size 132K x 8 Voltage-supply (Vcc/Vdd) 1.8V ~ 3.6V data converter A/D 24x12b; D/A 2x12b Oscillator type inside Working temperature -40°C ~ 85°C（TA） Installation type Surface mount type Package/housing 144-LQFP Supplier device package 144-LQFP（20x20）
integrated circuit Embedded microcontroller STMicroelectronics package tray Core processor ARM® Cortex®-M3 Core specification 32-bit single core speed 120MHz Connection ability CANbus, Ethernet, IC, IrDA, LINbus, memory card, SPI, UART/USART, USB OTG peripheral device Undervoltage detection/reset, DMA, is, LCD, POR, PWM, WDT I/O number One hundred and fourteen Program storage capacity 256KB（256K x 8） Program memory type flash memory EEPROM capacity - RAM size 132K x 8 Voltage-supply (Vcc/Vdd) 1.8V ~ 3.6V data converter A/D 24x12b; D/A 2x12b Oscillator type inside Working temperature -40°C ~ 85°C（TA） Installation type Surface mount type Package/housing 144-LQFP Supplier device package 144-LQFP（20x20）
