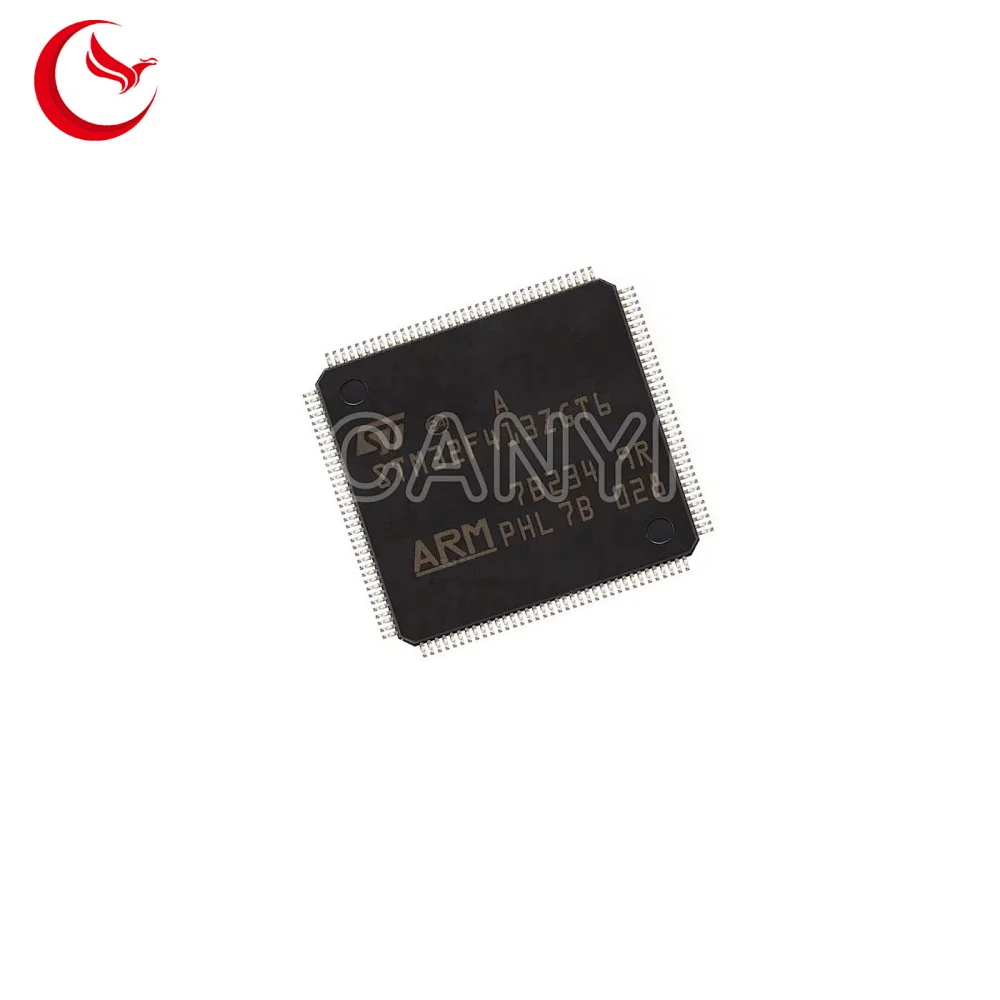

STM32F413ZGT6 integrated circuit Embedded microcontroller STMicroelectronics
STM32F413ZGT6
STM32F413ZGT6 integrated circuit Embedded microcontroller STMicroelectronics
Quantity
STM32F413ZGT6,integrated circuit Embedded microcontroller STMicroelectronics package tray Core processor ARM® Cortex®-M4 Core specification 32-bit single core speed 100MHz Connection ability CANbus,EBI/EMI,I²C,IrDA,LINbus,MMC/SDIO,QSPI,SAI,SPI,UART/USART,USB OTG peripheral device Undervoltage detection/reset, DMA, is, LCD, POR, PWM, WDT I/O number One hundred and fourteen Program storage capacity 1MB(1M x 8) Program memory type flash memory EEPROM capacity - RAM size 320K x 8 Voltage-supply (Vcc/Vdd) 1.7V ~ 3.6V data converter A/D 16x12b; D/A 2x12b Oscillator type inside Working temperature -40°C ~ 85°C(TA) Installation type Surface mount type Package/housing 144-LQFP Supplier device package 144-LQFP(20x20)
