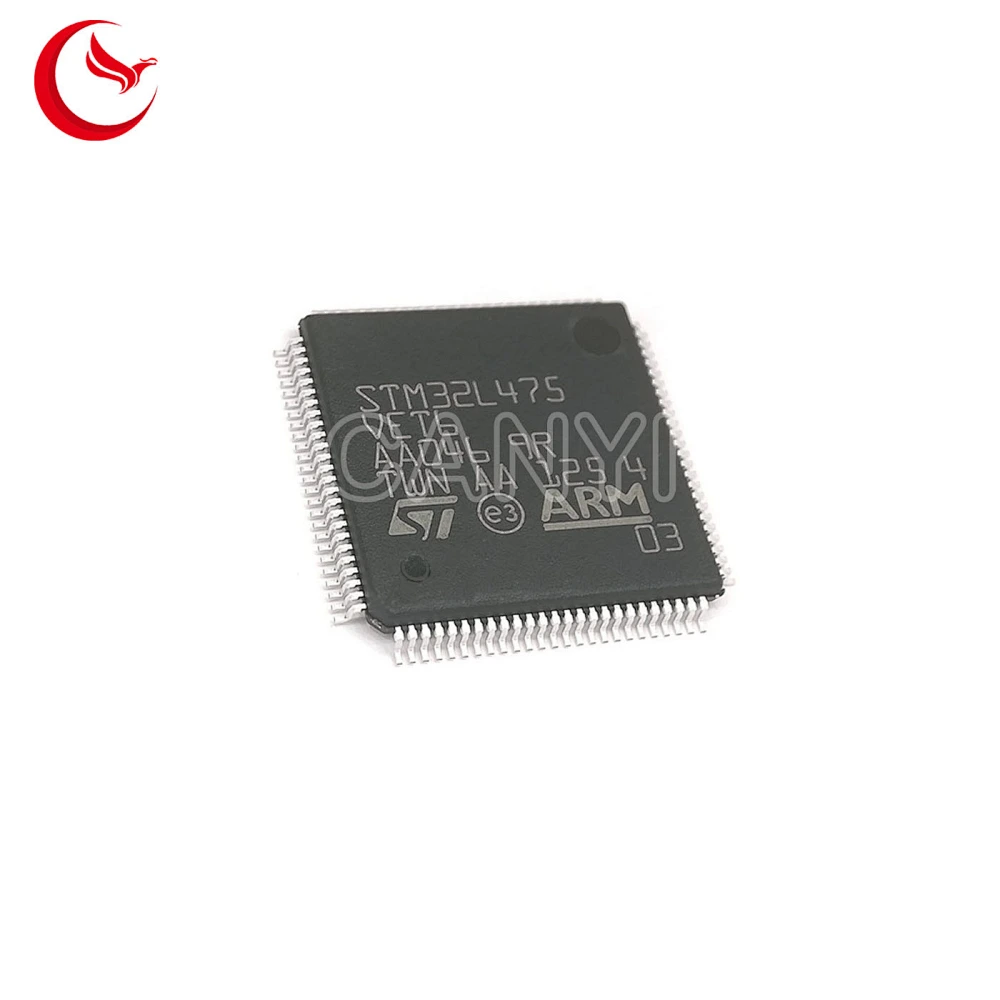

integrated circuit Embedded microcontroller STMicroelectronics,STM32L475VET6
STM32L475VET6
integrated circuit Embedded microcontroller STMicroelectronics,STM32L475VET6
Quantity
STM32L475VET6,integrated circuit Embedded microcontroller STMicroelectronics series STM32L4 package tray Core processor ARM® Cortex®-M4 Core specification 32-bit single core speed 80MHz Connection ability CANbus,EBI/EMI,I²C,IrDA,LINbus,MMC/SD,QSPI,SAI,SPI,SWPMI,UART/USART,USB OTG peripheral device Undervoltage detection/reset, DMA, PWM, WDT I/O number Eighty-two Program storage capacity 512KB(512K x 8) Program memory type flash memory EEPROM capacity - RAM size 128K x 8 Voltage-supply (Vcc/Vdd) 1.71V ~ 3.6V data converter A/D 16x12b; D/A 2x12b Oscillator type inside Working temperature -40°C ~ 85°C(TA) Installation type Surface mount type Package/housing 100-LQFP Supplier device package 100-LQFP(14x14)
