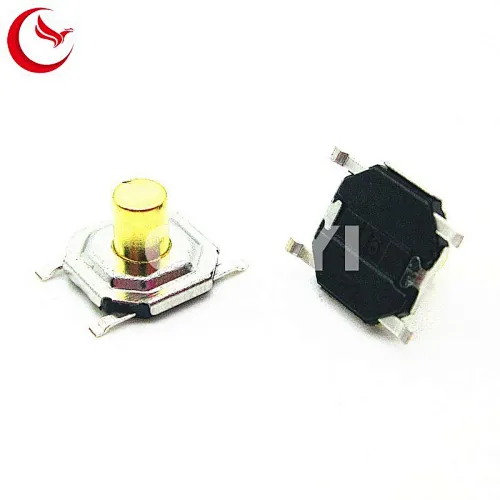

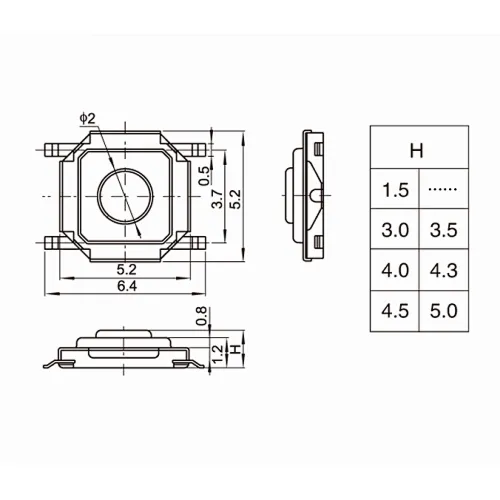

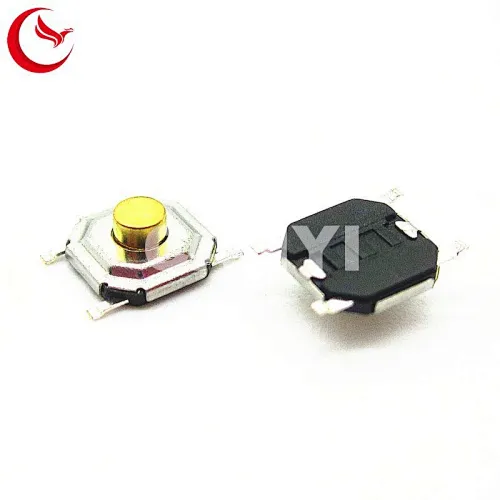

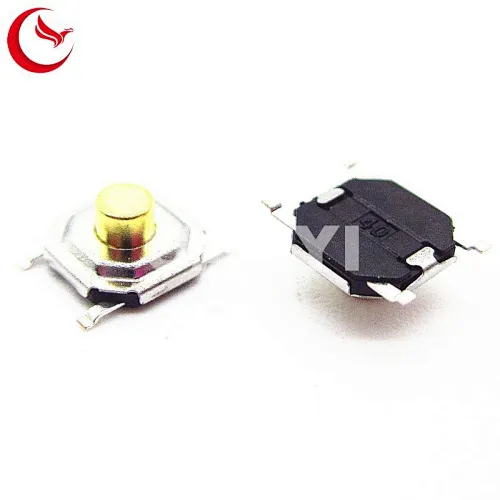

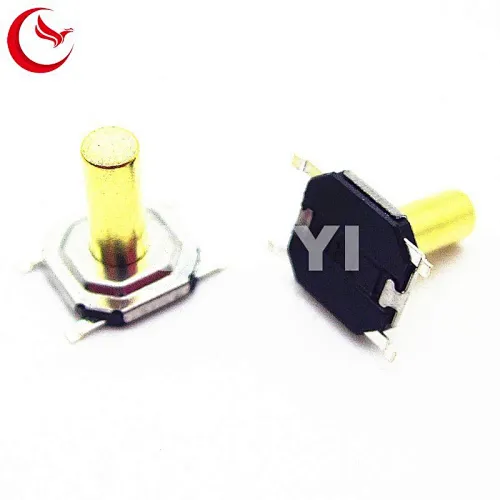

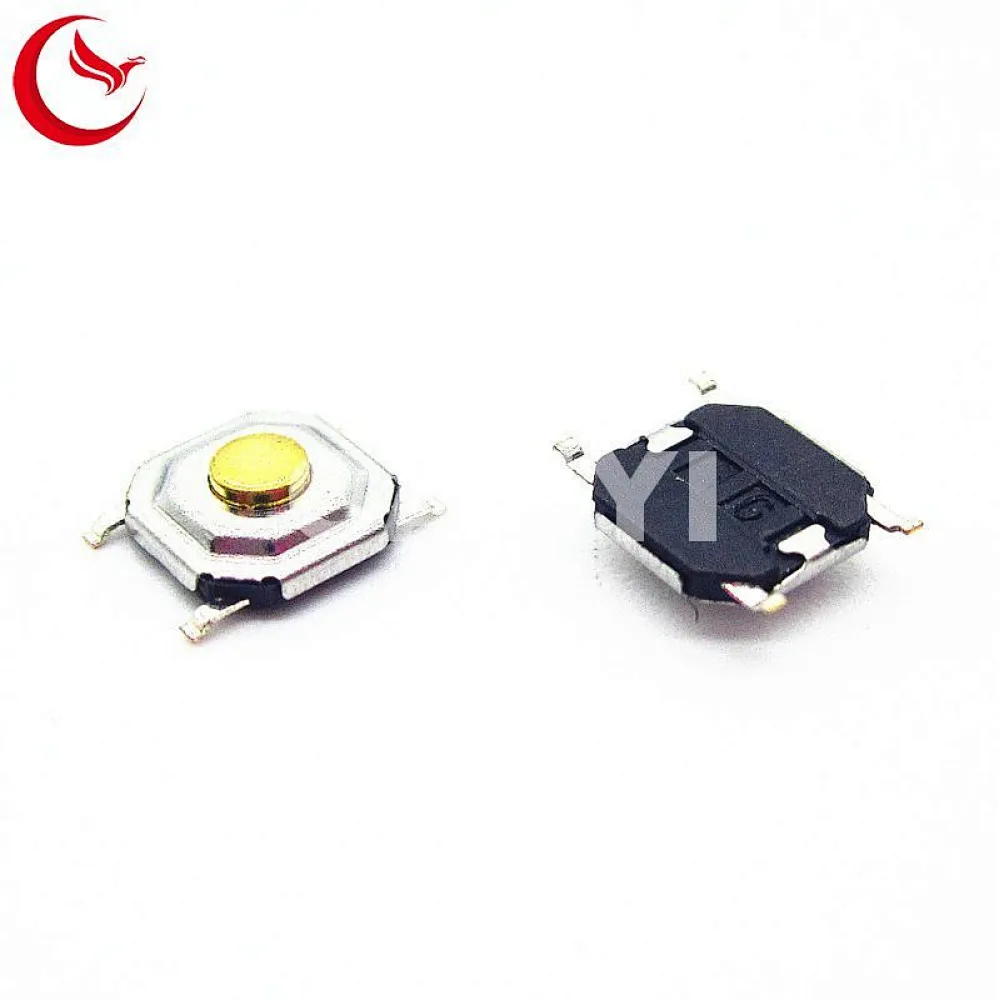

category switch touch switch series PTS526 package rewind circuit SPST-NO Switch function Off-instantaneous Rated contact current at different voltages 0.05A 12VDC Actuator type standard Installation type Surface mount type Height of actuator from PCB, vertical 1.50mm Actuator length, right angle - Actuator direction Top touch Termination style Gull wing appearance 5.20mm x 5.20mm illuminate non-luminance Operating force 260gf Intrusion protection IP40 trait - Working temperature -20°C ~ 70°C Actuator material - Switch stroke 0.25mm mechanical life 200,000 cycles
