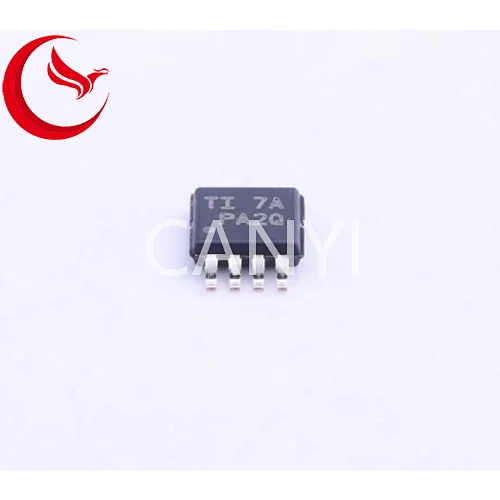

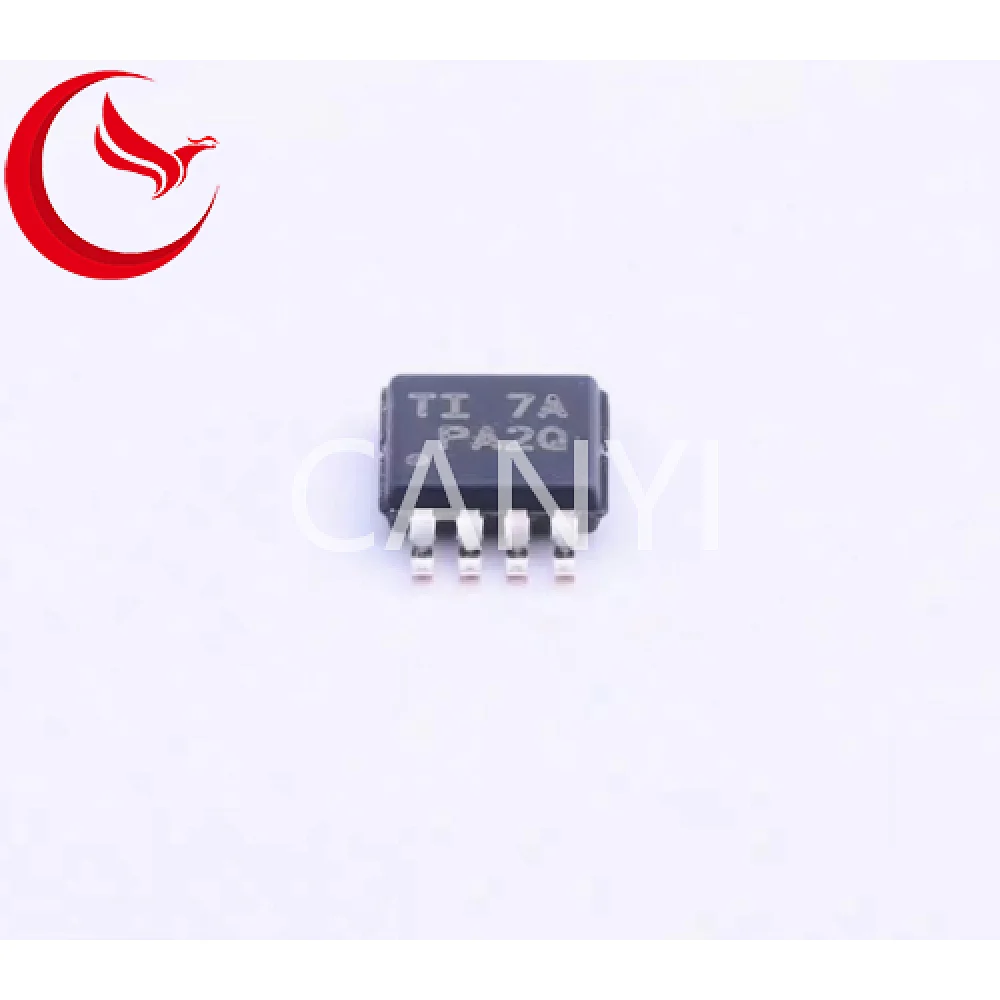

TPS7A6633QDGNRQ1,Integrated circuit (IC),Power management (PMIC),Regulator-linear,Texas Instruments,IC
TPS7A6633QDGNRQ1
1
TPS7A6633QDGNRQ1,Integrated circuit (IC),Power management (PMIC),Regulator-linear,Texas Instruments,IC,Chip distributor manufacturer from China.I look forward to cooperating with you. I will provide you with quality service.
Quantity
TPS7A6633QDGNRQ1,Integrated circuit (IC),Power management (PMIC),Regulator-linear,Texas Instruments,IC,Chip distributor manufacturer from China.
Integrated circuit (IC) Power management (PMIC) Regulator-linear Texas Instruments package rewind Output configuration straight Output type fixed Number of voltage regulators one Voltage-input (maximum) 40V Voltage-output (minimum/fixed) 3.3V Voltage-output (maximum) - Voltage drop (maximum) 0.45V @ 150mA Current-output 150mA Current-static (Iq) 20 µA PSRR 60dB ~ 40dB（100Hz ~ 100kHz） control characteristic Yes, the power supply is good defencive function Over-current, over-temperature, short circuit, under-voltage lockout (UVLO), watchdog Working temperature -40°C ~ 150°C（TJ） Installation type Surface mount type Package/housing 8-TSSOP, 8-MSOP(0.118",3.00mm wide) exposed pad Supplier device package 8-HVSSOP
Integrated circuit (IC) Power management (PMIC) Regulator-linear Texas Instruments package rewind Output configuration straight Output type fixed Number of voltage regulators one Voltage-input (maximum) 40V Voltage-output (minimum/fixed) 3.3V Voltage-output (maximum) - Voltage drop (maximum) 0.45V @ 150mA Current-output 150mA Current-static (Iq) 20 µA PSRR 60dB ~ 40dB（100Hz ~ 100kHz） control characteristic Yes, the power supply is good defencive function Over-current, over-temperature, short circuit, under-voltage lockout (UVLO), watchdog Working temperature -40°C ~ 150°C（TJ） Installation type Surface mount type Package/housing 8-TSSOP, 8-MSOP(0.118",3.00mm wide) exposed pad Supplier device package 8-HVSSOP
