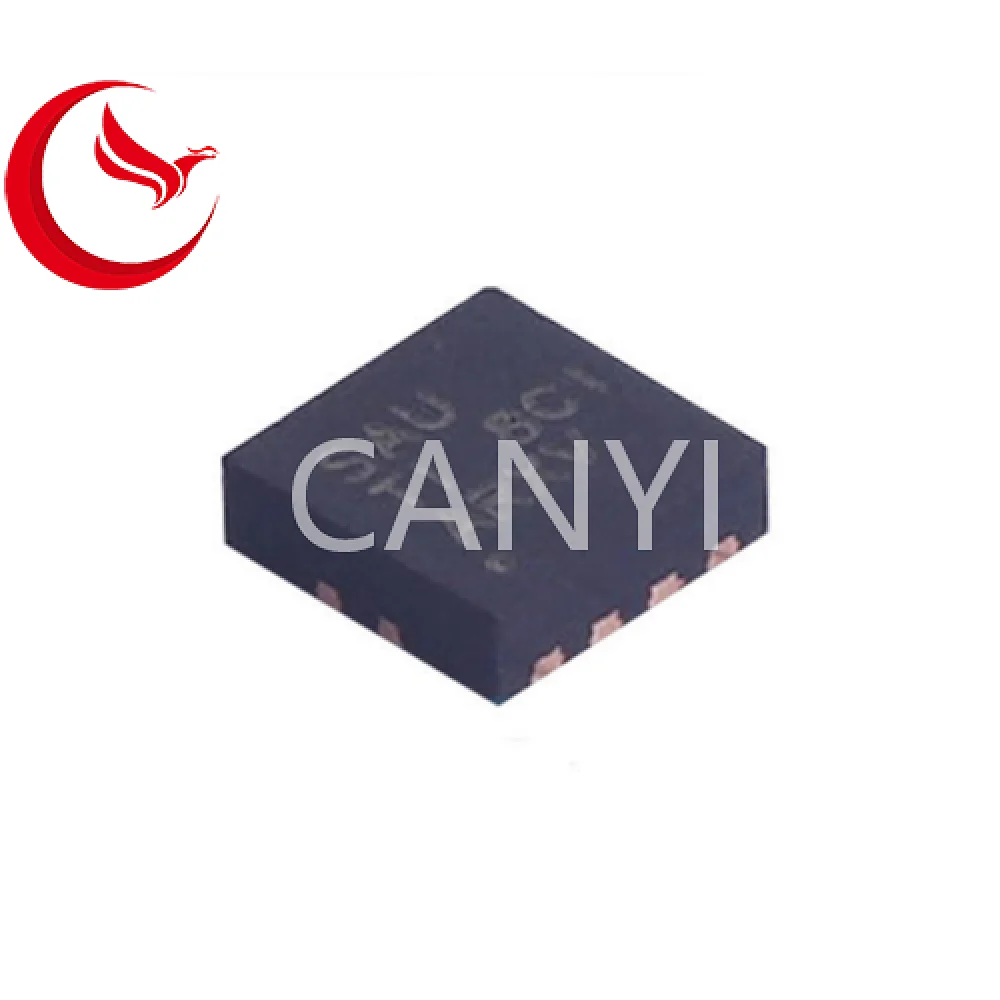

TPS7A8101DRBR,integrated circuit,Power management,Linear regulator,Texas Instruments,IC
TPS7A8101DRBR
1
TPS7A8101DRBR,integrated circuit,Power management,Linear regulator,Texas Instruments,IC,Chip distributor manufacturer from China.I look forward to cooperating with you. I will provide you with quality service.
Quantity
TPS7A8101DRBR,integrated circuit,Power management,Linear regulator,Texas Instruments,IC,Chip distributor manufacturer from China.
integrated circuit Power management Linear regulator Texas Instruments package rewind Output configuration straight Output type Adjustable type Number of voltage regulators one Voltage-input (maximum) 6.5V Voltage-output (minimum/fixed) 0.8V Voltage-output (maximum) 6V Voltage drop (maximum) 0.5V @ 1A Current-output 1A Current-static (Iq) 100 µA Current-power supply (maximum) 350 µA PSRR 48dB ~ 38dB（100Hz ~ 1MHz） control characteristic Enable defencive function Over-current, over-temperature, reverse polarity, under-voltage lockout (UVLO) Working temperature -40°C ~ 125°C（TJ） Installation type Surface mount type Package/housing 8-VDFN exposed pad Supplier device package 8-SON（3x3）
integrated circuit Power management Linear regulator Texas Instruments package rewind Output configuration straight Output type Adjustable type Number of voltage regulators one Voltage-input (maximum) 6.5V Voltage-output (minimum/fixed) 0.8V Voltage-output (maximum) 6V Voltage drop (maximum) 0.5V @ 1A Current-output 1A Current-static (Iq) 100 µA Current-power supply (maximum) 350 µA PSRR 48dB ~ 38dB（100Hz ~ 1MHz） control characteristic Enable defencive function Over-current, over-temperature, reverse polarity, under-voltage lockout (UVLO) Working temperature -40°C ~ 125°C（TJ） Installation type Surface mount type Package/housing 8-VDFN exposed pad Supplier device package 8-SON（3x3）
