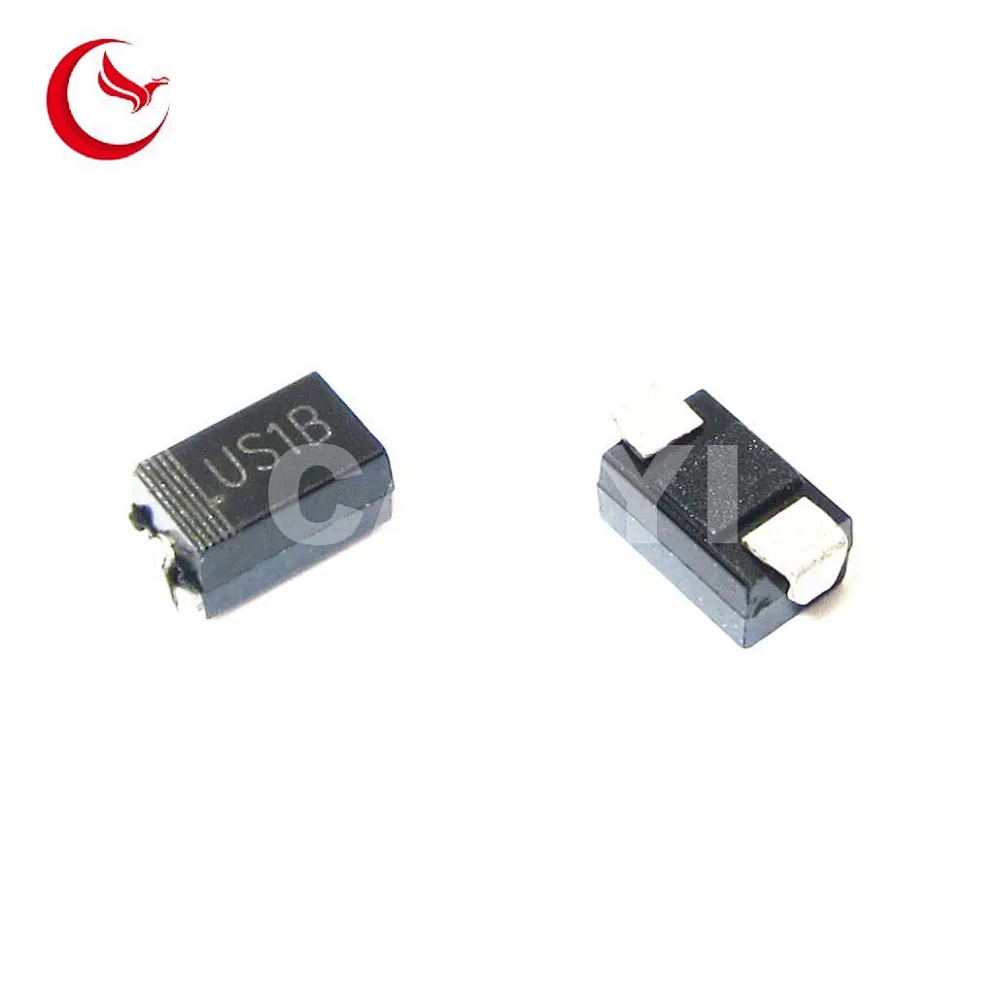

Discrete semiconductor products

Diode rectifier single

manufacturer

Taiwan Semiconductor Corporation

series

-

packing

Roll tape (TR)

Product status

On sale

Diode type

standard

Voltage - DC reverse (Vr) (maximum)

100 V

Current average rectification (Io)

1A

Voltage at different If - forward (Vf)

1 V @ 1 A

speed

Rapid recovery=<500ns,>200mA (Io)

Reverse recovery time (trr)

50 ns

Current - reverse leakage at different Vr

5 µA @ 100 V

Capacitance at different Vr and F

15pF @ 4V，1MHz

Installation type

Surface mount

Encapsulation/Housing

DO-214AC，SMA

Supplier device packaging

DO-214AC（SMA）

Operating temperature junction

-55°C ~ 150°C
